Product Introduction

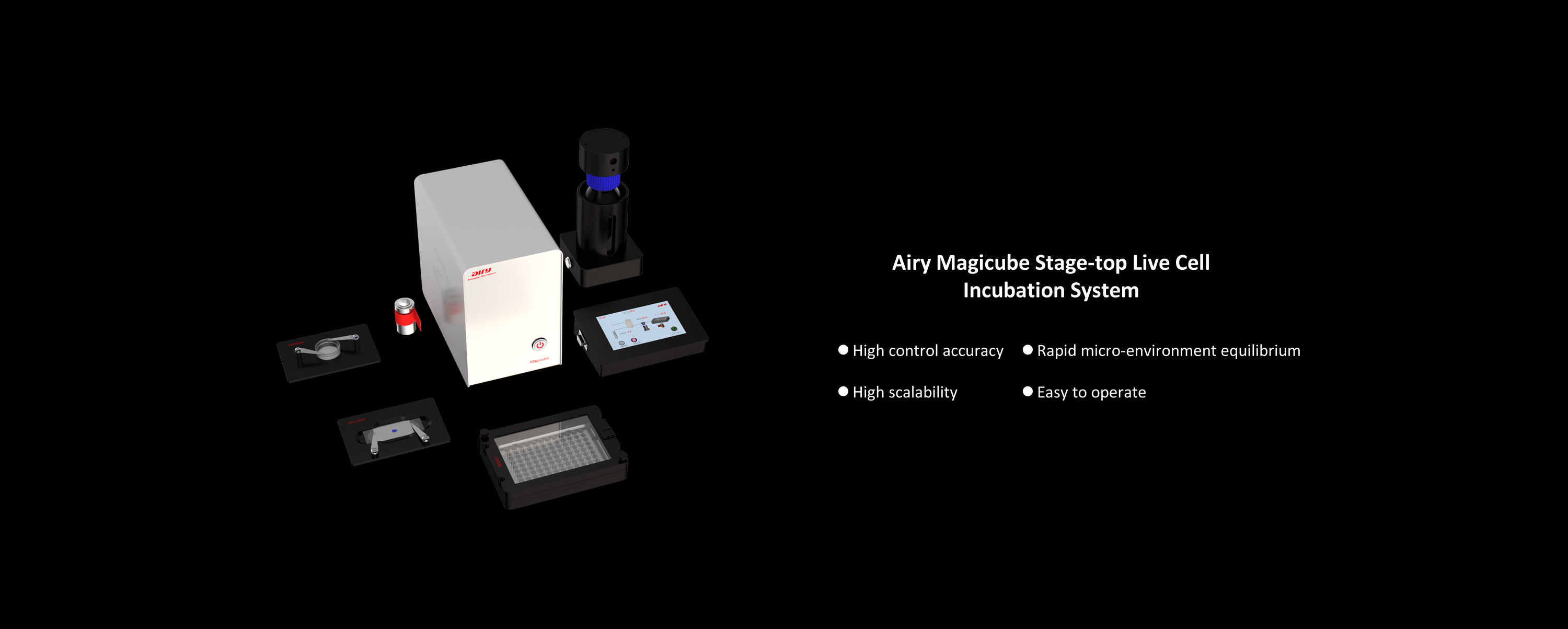

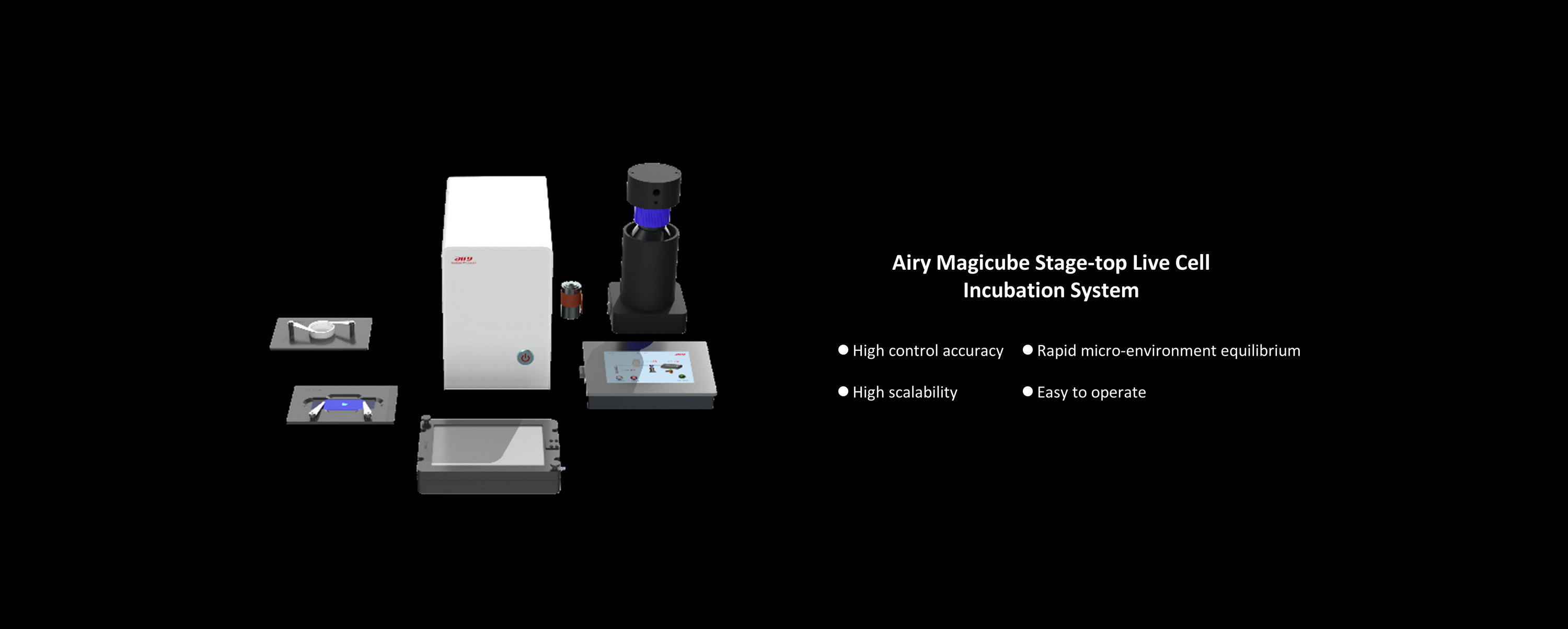

The MagiCube stage-top live cell incubation system is a support solution for long-term live cell imaging launched by Airy Technologies, which has the characteristics of high control accuracy, fast microenvironment balance, high scalability, and easy operation.

It maintains cell viability around the clock, which allows researchers to observe live cells in a time-lapse motion for days or even weeks, providing real-time insight into life processes.

Product features
01

High control accuracy

  • High-precision gas sensor with concentration control accuracy of ±0.1%@5%
  • Multi-point temperature control feedback, intelligent PID adjustment and locking, temperature control accuracy of ±0.1°C/li>
02

Fast microenvironment balancing

  • Fluid dynamics simulation, chamber structure design is more scientific
  • In the laboratory environment, the equilibrium time for the chamber to reach the usual set conditions is as fast as 30 minutes
03

Highly scalable

  • With a variety of holders, flexible for slides, Petri dishes and multi-well plates
  • Reserved perfusion channels allow for expansion of perfusion culture systems
  • Scalable cryogenic control system
04

Easy to operate

  • Magnetic cover and push-in connector
  • Color touch screen with graphical interactive interface
  • Consumables life monitoring, expiration replacement reminder
  • Easy switching between normal mode and anaerobic mode
Performance parameters
Temperature control accuracy

±0.1℃

Temperature control range

Ambient temperature+3℃ ~ 45℃

Temperature feedback method

External feedback + sample feedback

CO₂concentration control accuracy

+0.1%@5%

CO₂concentration control range

0~20%

O₂concentration control accuracy

±0.1% (Magicube-LO only)

O₂concentration control range

0~15%(Magicube-LO)

Humidity control range

65% ~ 92%

Dimensions

Central Control Unit：133mm X 230mm X 210mm

Cell culture chamber：110mmX160mmX25mm

Humidification unit：100mm X 100mm X 220mm

Data source: Customer
Animal Live-Cell Endoplasmic Reticulum Time Series Imaging (Polar-SIM Super-Resolution Microscope)
小图1
