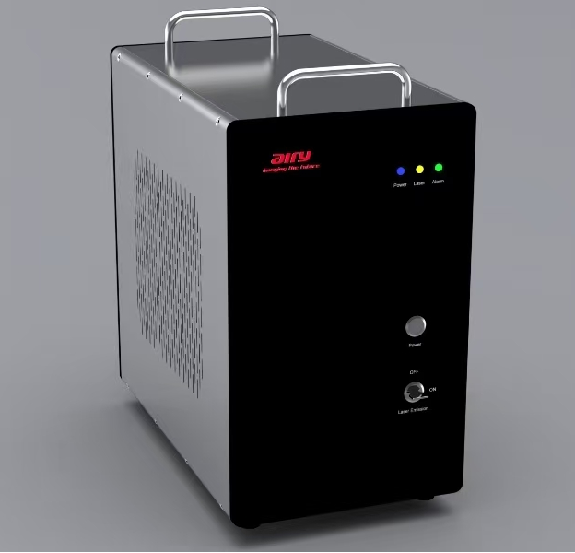

Airy laser source offers excellent monochromatism, directionality, coherence, high brightness/intensity, and excellent adjustability, making them ideal for high-performance imaging, especially fluorescence imaging.
● Working substances: semiconductor lasers, solid-state lasers.
● Working mode: Continuous (CW-Continuous Wave).
● Output mode: single-mode, multi-mode FC/APC interface, multi-mode SMA male interface.
● Laser type: Basic mode (TEM00), Near TEM00 or multimode (Multimode).
● Output channels: standard 4-channel output, support up to 7-channel laser output.
● Control mode: (1) Analog signal strength modulation, digital signal switch control, modulation frequency up to 1MHz (acoustic and optic modulator), laser control up to 30KHz; (2) Communication protocol strength switch control.
● Coupling efficiency: single-mode fiber >50% (out-of-fiber power ratio to the front power of the fiber, core diameter of 3um), multi-mode fiber >85% (out-of-fiber power compared to the power of the front fiber, core diameter of 200um).
confocal microscope, two-photon microscope and other optical system equipment.
